Query:

Re: If reading glasses alter my vision

Date: Wed Jan 12 18:35:44 2000
Posted By: Matthew B. Weyerich, Technical Coordinator,ES&R Dept., CPI Corp.
Area of science: Physics
ID: 945903332.Ph
Message:

Excellent question, my friend!

Your glasses are different from your windshield, in that your windshield is
basically a FLAT piece of glass. The inner and outer surfaces of your car's
windshield are basically parallel to one another, even where the glass
curves pretty strongly. This is deliberate. (The NHSTA and DOT mandate it.)

Your glasses are different. Depending upon your prescription, the inner and
outer surfaces of your lenses are probably convergent / divergent to some
degree. They refract light differently. Please bear with me as I try to
illustrate this…

Think of standing knee deep in a clear, still pond and trying to reach in
and grab a fish you see by your ankle near the bottom. (The classic example
involves trying to spear the fish. I'll try to be a little more sensitive.)
Can you grab that fish? Maybe, but you'll probably miss, because you are
probably watching a "virtual" fish!

Light travels at different speeds through different media. It changes
direction at the intersection of two different things like air and water.
(It "bends") Try this:

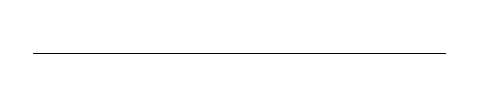

Draw a line. This is the surface of the pond water.

Now draw a fish underneath…

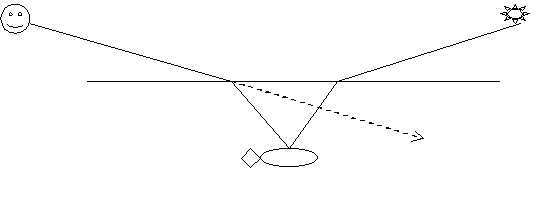

Now, add a light ray coming from the sun, entering the water, bouncing off
the fish, and going into your eye…(REMEMBER: Light changes directions a bit
when it hits the interface between two different media!)


See where the arrow points?  That's where you are "looking", and where you
will try to grab the fish. It's not where the fish is! The light "bent"
between the air and water, saving the fish! (I think fish understand this
intuitively.)

Which, you ask, has what to do with windshields and eyeglasses? (After all,
fish understand neither of these…)

When light hits glass it "bends" in a similar fashion. If you'll note, I
tried (badly) above to make the "bend" angles about the same for the light
ray entering and leaving the water. Light actually behaves this way.
If it hits a perpendicular glass surface it "bends", as above, but gets
"bent" back by the same amount when it leaves the glass and hits the air
again. (Assuming parallel front and rear surfaces, as in your windshield.)
As far as you are concerned, the light travels straight through the glass,
so you "see" things where they "are".

I don't know about your particular glasses, but mine are quite different
from a windshield.  If I pinch the middle of my eyeglass lens between my
thumb and forefinger, then drag my pinched fingers outward to the edge of
the lens, I can easily tell the edges are thicker than the center. [I'm
myopic, or, "nearsighted", like many semi-nerds.]

(Aside: I cleaned my fingers first, because I don't like dirty glasses. I
also don't like bird "stuff" which lands on my car windshield. I'm pretty
sure fish don't like it landing on the surface of their ponds, either,
because they usually eat "stuff" they see fall on the surface of the
pond…YUK!) Anyway…

Assuming light "bends" a certain amount when it hits the interface between
two media, and that the angle of "bend" at exit is opposite of that of
entry into the medium we should be able to figure out…nothing at all!

Unless, of course, we realize that light "rays" are actually light "wave"
fronts. Our one line ray…

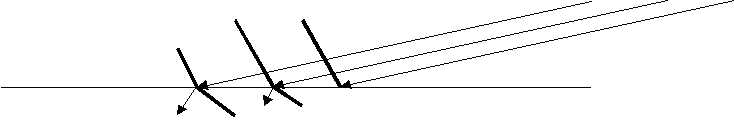

Becomes a wave-front of many rays…


See how the "fat" lines (wave-fronts, or, "sum" of many independently
directed rays) follow each other in parallel lines? Can you also see how
they hit the surface differently? (The line closer to the surface has
crossed more deeply into the "water" than the next wave's "ray-line".)

Just like ocean waves hitting a big rock on the beach, there's a discreet
time between the arrival of one wave and the next. If the ocean waves are
really big you can time them on your wristwatch. (Fish don't need
wristwatches, as they already understand about rocks and big waves.) Can
you see how the waves above are "breaking" on the surface of the water as
they arrive over time? The first [leftmost] wave is more underwater than
the next [middle] wave. It's also more "bent". Why?

Light travels at different speeds in different media, right? Speed involves
time. In other words, the first ray that hits the surface bends a certain
amount. Then comes the second, which bends the same, but not as quickly as
the first, because it's travelling behind that wave. (I tried to draw the
above rays with the first one shorter, so you could see the top one got
there first. Actually, you should pretend the rays all come from the same
point and hit the same point. Similarly, my "waves" should not be shorter /
longer above, or below, the surface line. This is just meant to enhance the
visual effect…kind of like a funky vector-diagram.)

I imagine you want to slap me with a fish at this point, so, I'll try to
bring things into focus:

Your windshield acts just like the pond. It "bends" (refracts) light. Your
glasses do the same.  The difference is time.

If the surfaces of your windshield are parallel, the ray / wave transit
time is basically equal for all incident rays / waves.  The surfaces of
your eyeglasses are most deliberately NOT like this, though. (Remember the
"pinch" experiment I described before?)

Eyeglasses are intentionally thicker and thinner in certain places. All
else equal, this means light waves have to spend more time transiting the
thicker parts than they do the thinner parts. Assuming equal entry and exit
angles, this means… it might sound "fishy"…light which goes through a
thicker part of  a lens will appear to be "bent" [refracted] more to your
eye. That's exactly what your eye doctor wants, and what your windshield
manufacturer fears. (If you have a Physics text you should look under
"Snell's Law", or, "index of refraction". If you happen to have Physics for
Science and Engineering  [Marion and Hornyak. CBS College Publishing /
Saunders College Publishing, 1982. ISBN 0-03-062831-8] as I do, you should
look at page 1074 for Snell, then work back to page 1066 for a good
overview of all of this. Better have your "calcul-us-ator" handy, though!)

I briefly wondered if auto manufacturers could make "prescription"
windshields. Don't think so! To do the job the "glass would have to be
really thick, flexible, moveable on many axes, and, probably, computer
controlled. Why?

My glasses pretty much sit in one place on my nose. If they don't, I don't
see as well. Windshields stay fixed. Drivers do not, by ANY means. You'd
have to have some means for a windshield-controlling computer to know where
the driver was looking and adjust the glass accordingly. It probably
wouldn't work out, even then, though…as drivers would soon learn… their
passengers either had different prescriptions, or perspectives: if we can't
see out the front window…that's where our senses tell us we're "going" as
we ride…we tend to get motion sickness more easily. Arguably, cleaning up
the tragic results of this scenario could easily outweigh the benefits of
drivers not having to wear vision correction!

Hope this has helped you in some way. (If only to fall asleep!) If you'd
like more detailed information - all the nasty math and physics stuff-
please e-mail me at mwnet@swbell.net. I really enjoyed working on this!

Your MadSci,

-Matt
(mwnet@swbell.net, or, mweyeric@cpicorp.com)

P.S. - My thanks to Mason Rogers, CPI Corp. (St. Louis, MO) for his help
with this. He mapped out this answer on a single page. It's not his fault
I'm so long winded! (He, too, harmed no fish while helping answer this.)
