Re: How can I calculate the stress force applied to a T joint?

Date: Sun Oct 1 18:09:28 2000
Posted By: Bob Gibilisco, Staff, Process Engineering, Retired
Area of science: Physics
ID: 968897519.Ph
Message:

Dave,

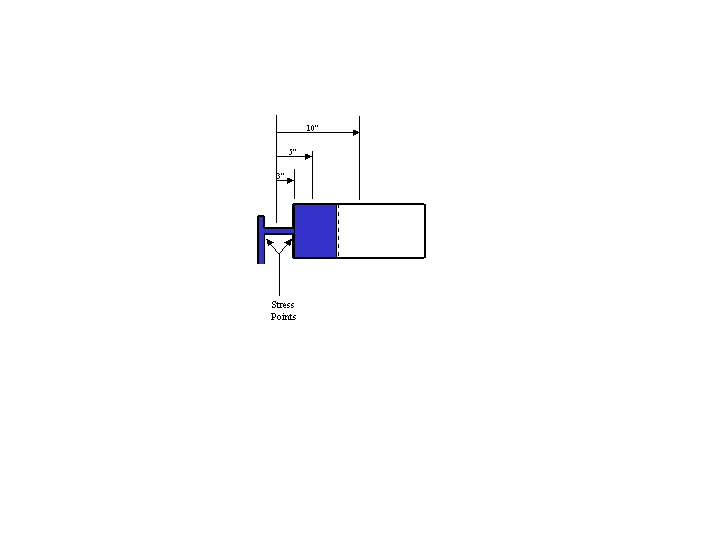

I visualize your application per the illustration below. The expansion tank,
and its contents, is attached to the T joint. The expansion tank is not
supported.

Calculate the total force applied to the stress points:
Tank = 16 lb.  Distance from center of tank to center of stub = 10"  = 160
in/lb.
Water = 8.33 lb.   Distance from center of water to center of stub = 5" =
41.6 in/lb.
Total force = 201.6 in/lb.
Force applied to each stress point = (201.6/2) = 100.8 in/lb.

A perspective for this amount of force: The recommended torque for a _"
machine screw is 120 in/lbs. (1).


Ref. (1) www.night rider.com/biketech/hdtorquevalues.htm
