Re: how can we calculate the optical confinement factor of a laser diode?

Date: Thu Oct 14 11:47:13 2004
Posted By: Kenneth Beck, Senior Research Scientist, Chemistry and Physics of Complex Systems, Pacific Northwest National Laboratory
Area of science: Physics
ID: 1097762981.Ph

Dear Vipul,

I've included two figures to describe the integral ratio which I cannot
describe as easily in text format (figure 1.jpg and Figure 2.jpg).

Figure 1

Figure 2

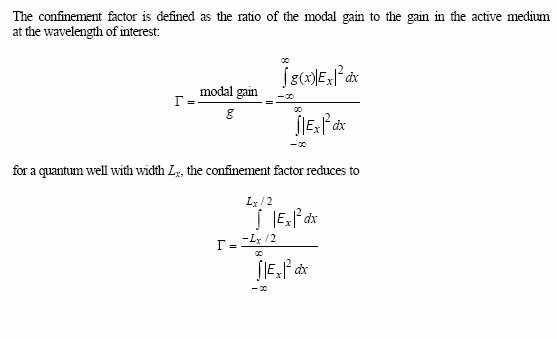

In Figure 1, Ex is the electrical field intensity of the first transverse
mode (TE) propagating in the active region. In other words, this formula
defines the fraction of the mode energy which is confined to the active
layer and thus “sees” optical gain.

In practice, only the fundamental transverse mode lases. It is also found
experimentally that its polarization is almost invariably TE. For these
reasons, one is mostly concerned with the propagating characteristics of
the TE mode in a symmetrical slab guide. A more general approximate
solution for that is valid is found by Botez*. Botez’s* analytical
techniques yield accurate results in calculating for 3-region guides. The

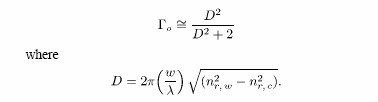

approximation given by Botez* for calculating the optical confinement
factor in a symmetrical waveguide for the TE mode is found in Figure 2

Here, lambda is the vacuum wavelength at the lasing photon energy, D is
the normalized thickness of the active region, n(r,w) and n(r,c) are the
indices of refraction of the active and cladding layers, respectively,
and w is the thickness of the active layer.

Hope this helps!

---* Dr. Ken Beck

* D. Botez, “Analytical approximation of the radiation confinement factor
for the TE0 mode of a double heterojunction laser,” IEEE   J. Quantum
Electron., vol. QE-14, pp. 230–232, 1978.
   D. Botez, “Near and far-field analytical approximations for the
fundamental mode in symmetrical waveguide DH lasers,” RCA Rev., vol. 39,
pp. 577–603, 1978.
